The instrument that separate and discharge the ferrous metals by magnetic attraction from mixture that is put in through the suit.
-
Following the materials, the input volume can be controlled and the life cycle of magnetic attraction is semi-  permanent, because it is produced with permanent magnet.
-
Guarantee the high quality material and life cycle of machinery, and automate the production line.



The job-site that needs to separate the ferrous metals in the powder materials.


(§®)

Model r.p.m Flow
Capaicity
Magnetic Drum Dimension Motor Mass
Dia Length A B C D E
HPDS-3130 45 20m²/h ø315 300 550 360 800 180 350 0.25 130kg
HPDS-3150 28m²/h 500 560 170kg
HPDS-3170 36m²/h 700 760 210kg

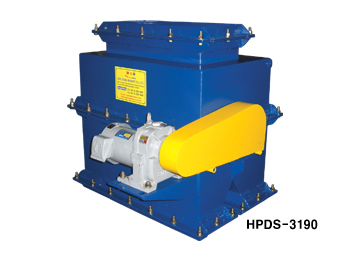

HPDS-3190 45m²/h 900 960 0.4 170kg
HPDS-4040 40 28m²/h ø400 400 650 500 1000 200 420 0.25 140kg
HPDS-4060 40m²/h 600 700 220kg
HPDS-4080 52m²/h 800 900 0.4 310kg
HPDS-4090 65m²/h 900 1000 350kg
HPDS-4550 35m²/h ø450 500 750 600 1200 220 480 200kg
HPDS-4570 55m²/h 700 800 0.55 250kg
HPDS-4580 70m²/h 800 900 380kg
HPDS-5090 85m²/h 900 1000 450kg
