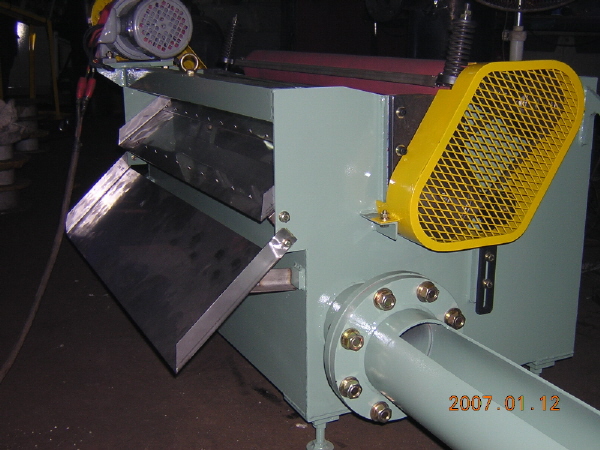

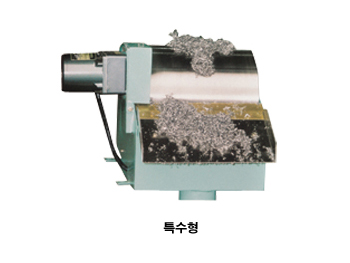

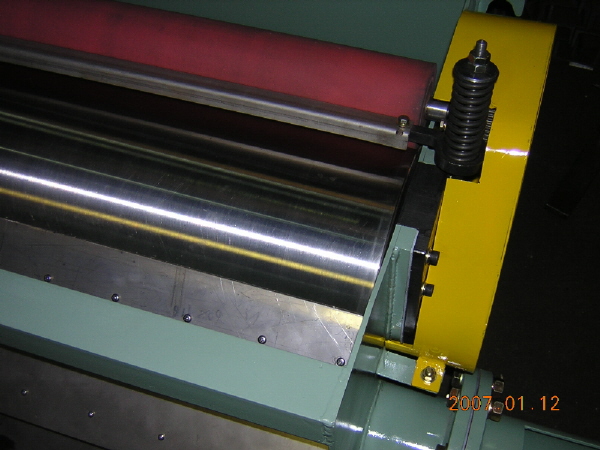

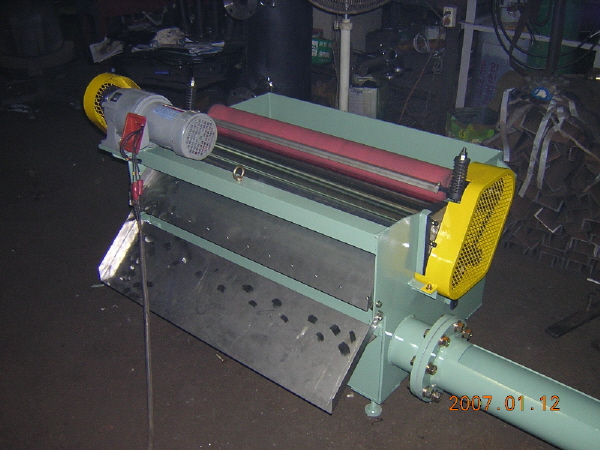

- With rational magnetism array of powerful magnet inside of magnetic roller, it is composed to remove chip constantly   from cutting &    grinding oil by rotation of magnetic drum.

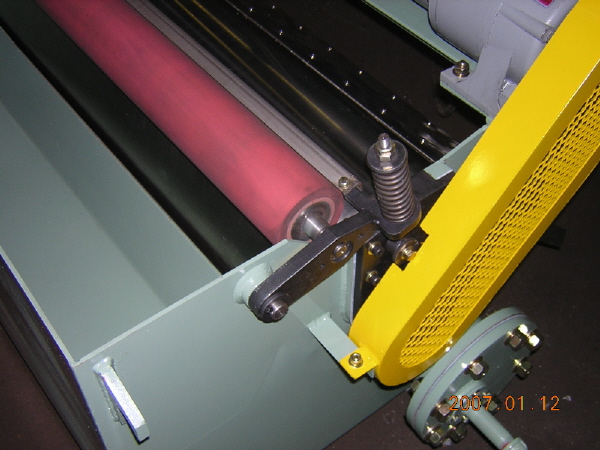

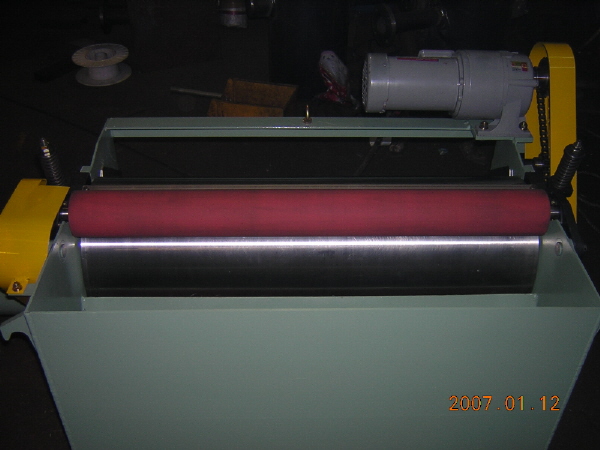

- Squeezing the cutting & grinding oil constantly that is included chip by using rubber roller.

More suitable for chip disposal of all sorts of grinder and private use machinery such as horning M/C and component rolling M/C.

▼ Small Capacity

Model	ℓ/min	Motor	외 관 치 수
			A	B	C	D	E	F	G	H
HMS-10L	10	25W (220V)	225	15	40	310	130	70	140	200
HMS-20L	20		270	15	45	360	130	70	140	200
HMS-40L	40		270	15	45	360	130	70	140	200
HMS-80L	80		270	15	45	360	130	70	140	200
HMS-120L	120	60W (220V)	460	20	80	500	200	90		275
HMS-240L	24		460	20	80	500	240	90		275
HMS-360L	360	50W (220V)	460	20	75	500	240	100		275

Model	외 관 치 수							Inlet	Outlet
	I	J	K	L	M	N	O
HMS-10L	145	200	145	200	145	110	20	1¼"	1¼"
HMS-20L	185	165	75	45	145	120	20	1½"	1½"
HMS-40L	245	215	75	45	145	120	20	2"	"
HMS-80L	295	265	75	45		120	20	2"	2½"
HMS-120L	395	365		60				2½"	3"
HMS-240L	495	465		60				3"	3"
HMS-360L	595	565		60				4"	4"

▼ Mass Capacity

Model	용량 ℓ/min	Motor	A	B	C	D	E	F	G	H	I	J	K	L	M
HMS-500	500	3ø 60Hz 220v 0.2kw	900	800	50	50	150	1125	100	75	810	490	70	170	335

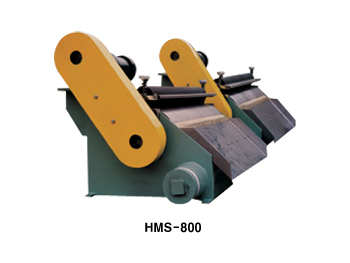

HMS-800	800		920	820				1145	120		855	535	95	195	380
HMS-1000	1000
HMS-1200	1200	3ø 60Hz 220V 0.4kw									885
HMS-1500	1500		1000	900				1225	145		960	600	130	220	435

Model	N	O	P	Q	R	S	T	U	V	W	유입구	유출구
HMS-500	155	1020	530	490	600	110	820	75	200	80	5"	6"×2EA
HMS-800		1430	735	695	900	165	1230		300		4"×2EA	8"×2EA
HMS-1000		1730	885	845	1200		1530		400		5"×2EA	8"×2EA
HMS-1200		1930	985	945	1400>		1730		450		5"×2EA	8"×2EA
HMS-1500	165	2230	1135	1095	1600	215	2030		500		6"×2EA	10"×2EA
