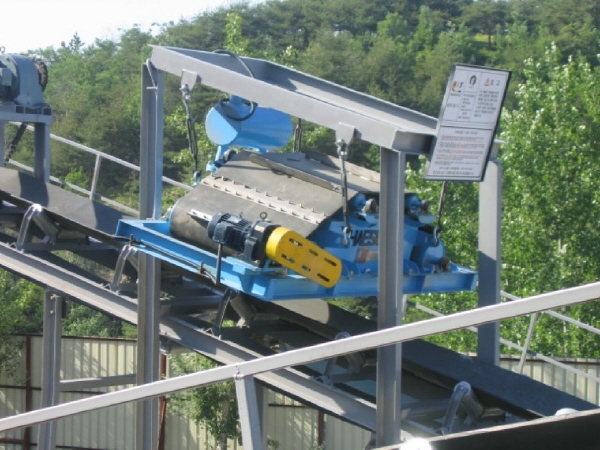

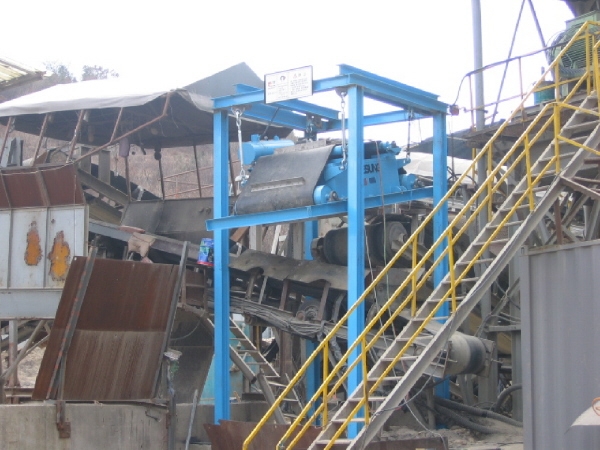

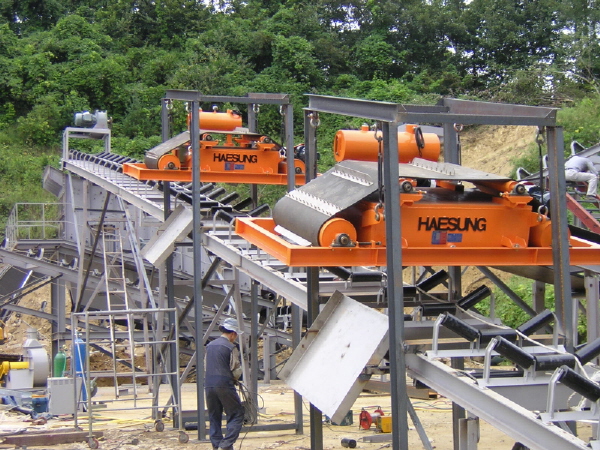

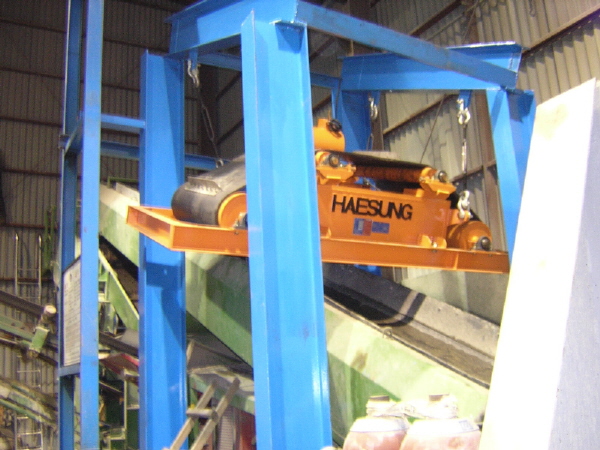

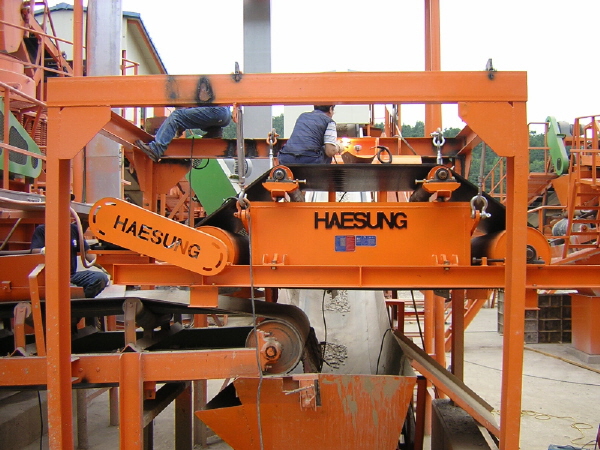

As the first patented electromagnetic separator in Korea, this magnetic separator is an epoch-making article that having the effectiveness of saving energy and environmentally friendly.  Magnet instrument that separating the recycling ferrous materials from mixtures on conveyor belt.

- Oil-cooling type electromagnetic separator with self cleaning system (belt-cleaning)
- Heavy duty operation available
- Easy to install structure

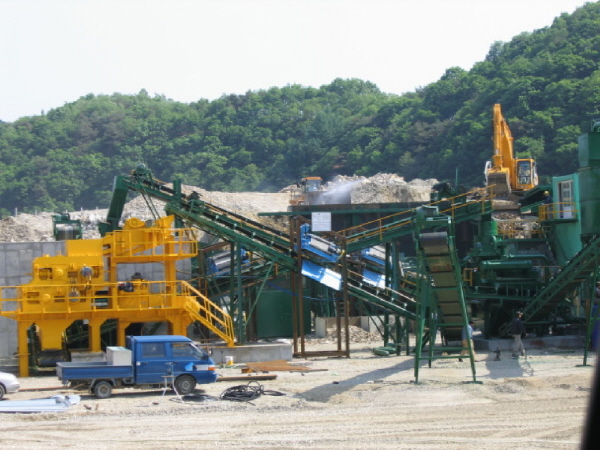

  • Construction Waste Reprocessing/ Recycling Facility

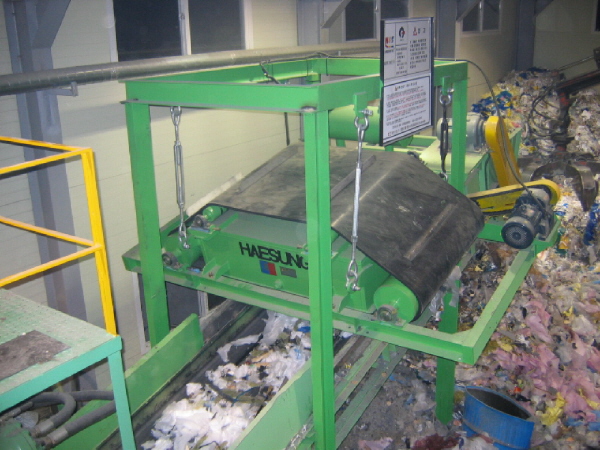

  • Industrial Waste Reprocessing/ Recycling Facility
  • Waste Incinerating Facility
  • Equipment (i.e Crasher, Screen, etc) Protection for an Aggregated Waste Processing Facility
  • Cement Manufacturing Facility
  • Steam (Thermal) Power Plant

(§®)

Model Applicable
Belt
Conv' Width
Distance
to
Conveyor
Dimension Magnet
Unit
Power
Consumption
Mass
A B C D E F Magnet Motor
SEMS-60 600 250-300 2200 750 860 600 500 700 1.2kw 1.5kw 1000kg
SEMS-70 750 250-300 2400 950 1060 800 700 900 2kw 1.5kw 1350kg
SEMS-90 900 250-350 2500 950 1160 900 800 1000 3kw 2.2kw 2200kg
SEMS-100 1050 300-400 2700 1200 1360 1100 1000 1200 4.5kw 2.2kw 2500kg
SEMS-120 1200 300-400 2800 1200 1460 1200 1100 1350 5.5kw 3.7kw 3200kg

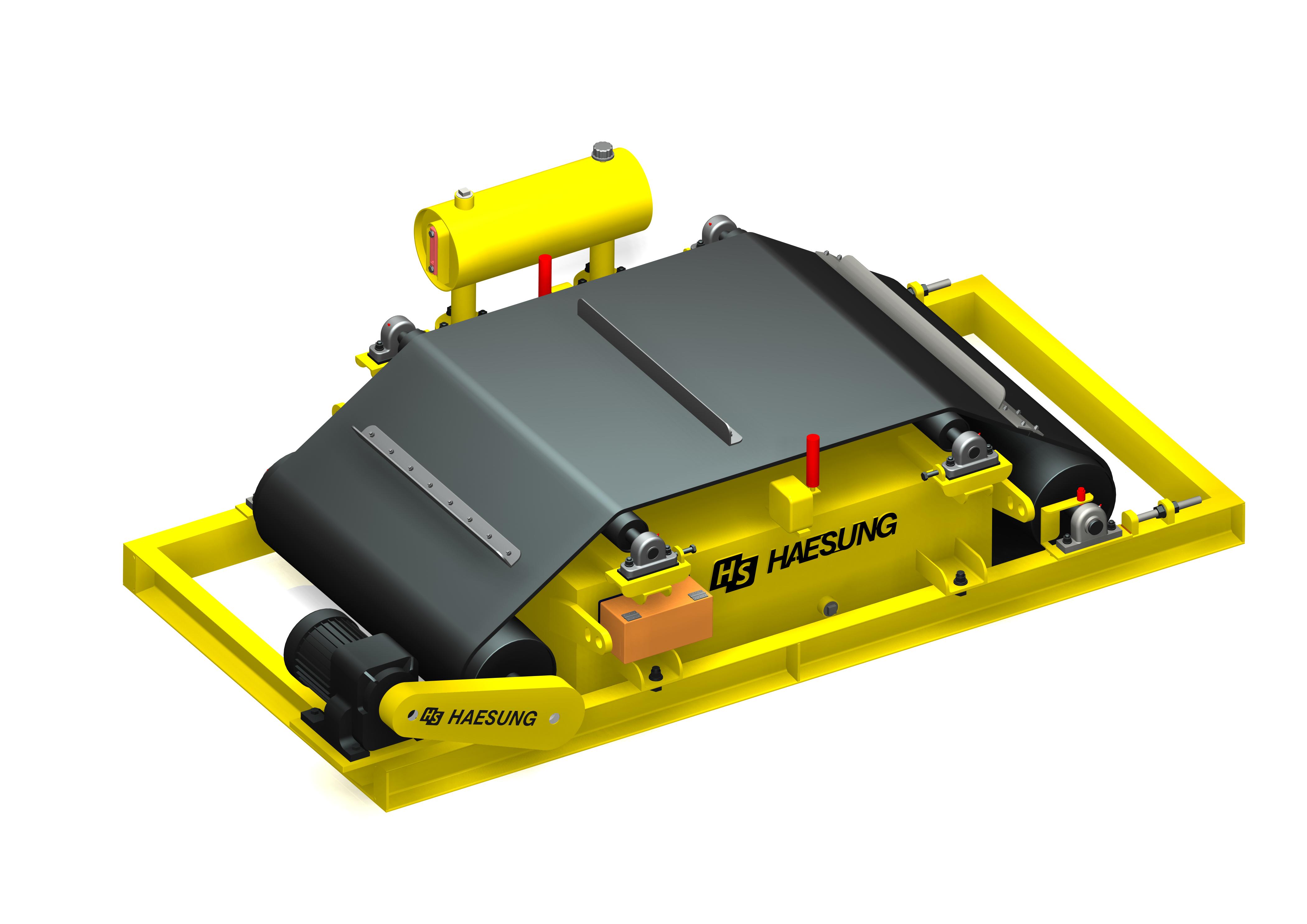

SEMS-140 1300 300-450 3100 1200 1560 1300 1200 1550 7.5kw 3.7kw 4500kg

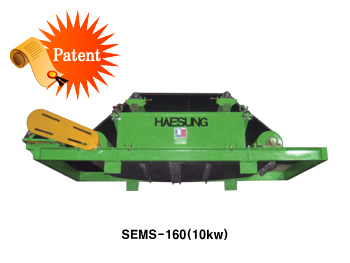

SEMS-160 1400 300-450 3500 1200 1710 1550 1350 1600 10kw 5.5kw 5800kg

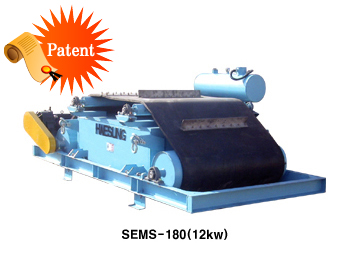

SEMS-180 1500 400-450 3800 1500 1860 1600 1500 1600 12kw 7.5kw 6500kg
SEMS-200 1600 400-480 4000 1600 1960 1700 1500 1800  15kw 7.5kw 8000kg
