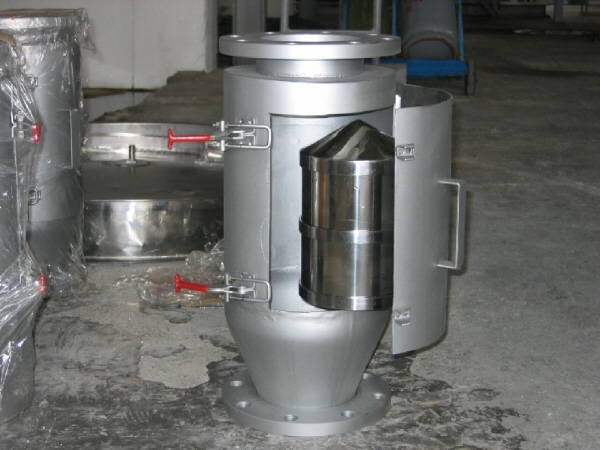

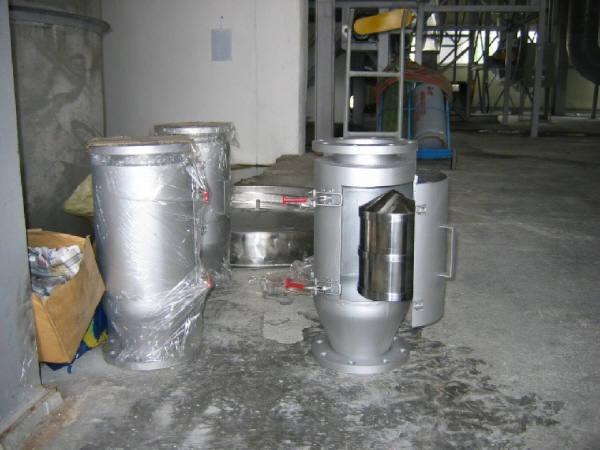

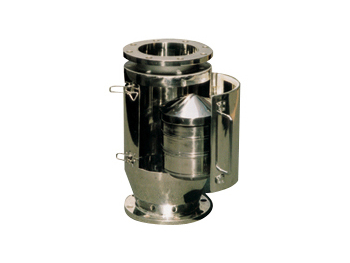

Generally adhered to pipe shaped suit, it is very effective to remove the ferrous metals from dropping mixture from upper side.




Tubular separator is applied to the flow system of powder and granular material industry.


(㎜)

Model Dimension Flow
Capacity		 Mass
A B C D E F G H t
TMS-1 61 105 130 145 195 65 50 310 8 1m²/h 6kg
TMS-2 102 155 190 220 380 130 70 570 3m²/h 13kg
TMS-3 165 230 265 275 430 150 100 680 6m²/h 22kg
TMS-4 216 280 320 345 520 170 790 10m²/h 30kg
TMS-5 267 345 385 435 580 270 950 15m²/h 45kg
TMS-6 319 390 430 485 600 300 1000 20m²/h 58kg
TMS-7 406 495 540 620 700 300 1100 35m²/h 85kg
TMS-8 508 605 655 780 780 320 1200 55m²/h 110kg
