-  Superpower type electromagnetic chuck by special design for heavy-duty cutting.
-  It is possible to manufacture controlling distane between poles according to structure

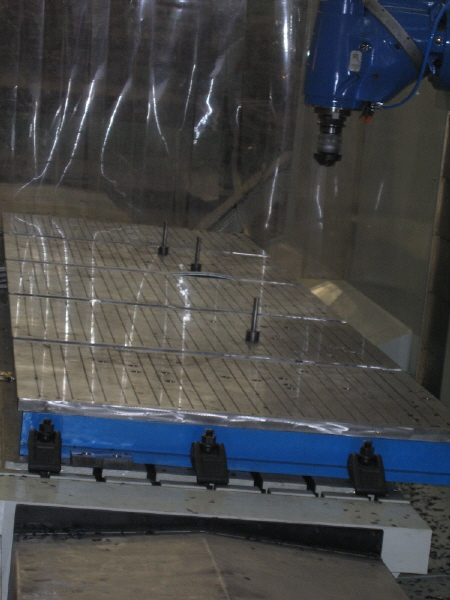

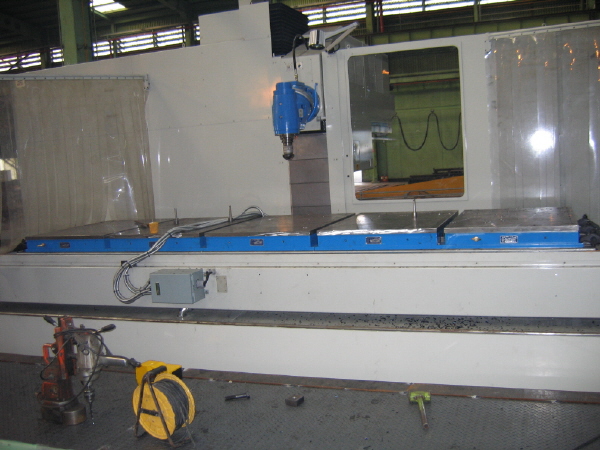

It is suitable for heavy-duty cutting processing for mold manufacturing industry, subcontract milling processing industry etc.. milling or planer, Mirror.

(㎜)
Model Normal
Dimension		 Top Plate Pole
Picth		 No of
Ples		 Bottom Plate Height Hole Voltage Current Weight
(kg)
B₁ L₂ T L₃ Le P₁ P₂ B₂ L₂ h H
HMC-2050H 200×500 200 500 25 422 160 74 42 4 195 535 18 100 DC 90V 0.90A 75
HMC-3060H 300×600 300 600 535 730 70 31 5 295 635     1.59A 130
HMC-4080H 400×800 400 800 725 320 80 41 7 395 835 2.52A 230
HMC-40100H 400×1000 400 1000 917 340 65 55 8 390 1000 2.96A 288
HMC-50100H 500×1000 500 1000 920 420 80 28 8 495 1035 25 120 3.96A 360
HMC-50150H 500×1500 500 1500 1421 430 67 55 8 490 1500     5.4A 540
HMC-60100H 600×1000 600 1000 917 530 65 55 12 590 1000 5.3A 432
HMC-60150H 600×1500 600 1500 1421 530 67 55 12 590 1500 6.5A 650
